| 6-IRMAN |
| |
|
| |
|
| Non-Contact Fixed Infrared Thermometer |
6-IRman non-contact infrared thermometer measures the amount of infrared energy emitted from object and transmits standard current output signal (4~20mA) or RS-485 communication output signal. Also, it transmits relay contacts for alarm signal.
As 6-IRman is composed of infrared sensor head & LCD display with keypad, you can check the temperature value in real-time at the installation site.
You can measure the temperature ranged from -20 to max. 600℃ with adjustable measurable temperature range. Adapting optical lens offers improved measuring accuracy and 10:1 Field of View offers accurate measurement for long distance object. Emissive rate can be adjusted 0.10 ~ 0.99. |
|
|
| |
| [ Applications ] |
 Plastics, Fluids, Rubber, Coated components, Asphalt, Wood, Paper, Ceramics, Textiles, Glass, Food etc. |
| |
| [ Specification
] |
|
|
| Temperature Range |
-20~600℃ |
| Device |
Thermopile |
| Accuracy |
±1%/F.S |
| Repeatability |
±1% of Rdg |
| Field of View(D:S) |
10:1 |
| Optical spectrum wave |
8~14㎛ |
| Responsive Time |
500msec or below |
| Emissive rate |
0.10~0.99 |
| Analog Output |
4~20mA, 1~5V(option) |
| Communication output signal |
RS-485 communication signal |
| Relay Output |
2 step- Relay Contact (AL1/AL2) |
| Power |
DC 12~24V(Max 100mA) |
| Ambient temperature(no water cooling) |
0~70℃ |
| Temperature Resolution |
0.1℃ |
| Operating Relative Humidity |
5~90% |
| Operating Ambient Temperature |
-30~85℃ |
| Waterproof |
IP65,NEMA 4 |
| Dimensions |
Signal Process Module: 98 × 64
Sensor Head: 41 × Ø16 |
| Casing material |
SUS |
| Weight |
285g |
| Cable length |
3m, other |
|
|
| |
| [ Code Number 6-IRman-□-□-□ ] |
|
|
| Model |
Description |
| 6-IRMAN |
|
| Code A |
Temperature Range |
| 1 |
-20~600℃ |
| 2 |
0~600℃ |
| Z |
Other |
| Code B |
Output |
| M |
0~20mA |
| N |
4~20mA |
| Z |
Other |
| Code C |
Cable Length |
| 1 |
3m Cable |
| Z |
Other |
|
|
| |

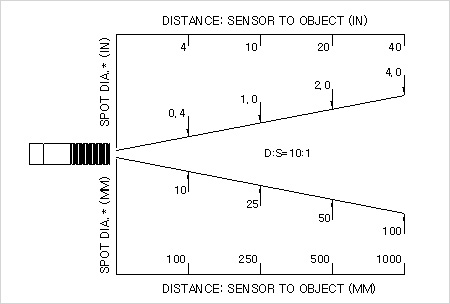

| [OPTICAL FIELD OF VIEW (D:S = 10:1)] |
|
 |
|
