| IR-22 |
| |
|
| |
|
| Non-Contact small size Fixed Infrared Thermometer |
IR-22 non-contact infrared thermometer measures the infrared wavelength emitted from the target spot and converts it to standard current signal output (4~20mA) and RS-485 communication signal output.
It can measure from -60 ℃ to maximum 380℃ and RS-485 communication enables to store data in computer.
IR-22 has a high precision by adopting optical lens which can enable to measure target exactly at a long distance through its 10:1 D:S (Distance to Spot).
|
|
|
| |
| [ Applications ] |
 Plastics, Fluids, Rubber, Coated components, Asphalt, Wood, Paper, Ceramics, Textiles, Glass, Food etc.
|
| |
| [ Specification
] |
|
|
| Measurement Range |
-60℃ ~380℃
|
| Device |
Thermopile
|
| Accuracy |
±1% / full scale
|
| Repeatability |
±1% of reading
|
| Distance : Spot |
10:1
|
| Optical spectrum wave |
8~14㎛
|
| Responsive Time |
0.1 sec or below
|
| Emissivity |
0.95 fixed
((Changeable when using PC software program)
|
| Analog Output |
4~20mA
|
| Communication |
RS-485
|
| Power |
DC 12~24V(Max 50mA) |
| Ambient temperature |
-20~70℃ |
| Temperature Resolution |
0.1℃ |
| Operating Relative Humidity |
5~90% |
|
Storage temperature |
-30~85℃
|
| Dimension |
Ø16 ×70.5(L) |
| Housing material |
SUS
|
| Weight |
75g |
| Cable lenght |
1m (standard), other(option) |
|
|
| |
[ Code Number IR-Compact-□□□
]
|
|
|
| Model |
Description |
| IR-22 |
|
| Code A |
Temperature Range |
| 1 |
-60~380℃ |
| 2 |
0~200℃ |
| Z |
Other |
| Code B |
Output |
| M |
DC 0~20mA |
| N |
DC 4~20mA |
| Z |
Other |
| Code C |
Cable Length |
| 1 |
1m Cable |
| Z |
Other (option) |
|
|
| |

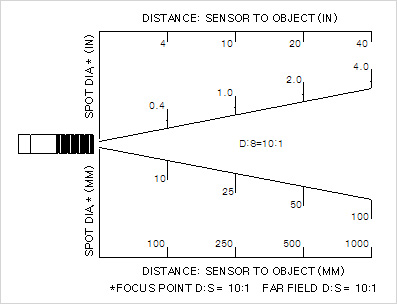

| [Optical Field of View
] |
|
 |
| |
|
IR-20
