| Non-Contact Fixed Infrared Thermometer
|
| IR-21 non-contact infrared thermometer measures the infrared wavelength emitted from the target spot and converts it to standard current signal output (4~20mA) or RS-485 communication signal output. It can measure from 0 ℃ to maximum 400℃ in the distance of 12:1 D:S(Distance to Spot). |
|
|
| |
| [ Applications ] |
 Plastics, Fluids, Rubber, Coated components, Asphalt, Wood, Paper, Ceramics, Textiles, Glass, Food etc.
|
| |
| [ Specification
] |
|
|
| Measurement Range |
0~400℃ |
| Device |
Thermopile |
| Accuracy |
±1% / full scale |
| Repeatability |
±1% of reading |
| Field of View(D:S) |
12:1 |
| Optical spectrum wave |
8~14㎛ |
| Responsive Time |
500msec or below |
| Emissive rate
|
0.95 |
| Analog Output |
4~20mA, 1~5V(option) |
| Communication output signal
|
RS-485 communication signal |
| Power |
DC 12~24V(Max 50mA) |
| Ambient temperature(no water cooling) |
0~70℃ |
| Temperature Resolution |
0.1℃ |
| Warm up Period |
1 to 2 minutes |
| Operating Relative Humidity |
5~90% |
| Operating Ambient Temperature |
-30~85℃ |
| Waterproof |
IP65,NEMA 4 |
| Dimensions |
Ø36 ×110.5(L) |
| Signal Cable |
4 wire shield type |
| Casing material |
Aluminum Alloy |
| Weight |
210g |
| Cable length |
3m(standard), other(option) |
|
|
| |
| [ Code Number IR-21-□-□-□ ] |
|
|
| Model |
Description |
| IR-21 |
|
| Code A |
Temperature Range |
| 1 |
0~200℃ |
| 2 |
0~400℃ |
| 3 |
-20~400℃ |
| Z |
Other |
| Code B |
Output |
| M |
DC 0~20mA
|
| N |
DC 4~20mA
|
| V |
Voltage Output(1~5V)
|
| Z |
Other |
| Code C |
Cable Length |
| 1 |
3M |
| Z |
Other |
|
|
| |

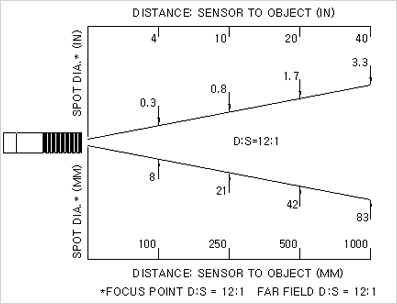

| [Optical Field of View (D:S 12:1)] |
|
 |
