| IR-Compact |
| |
|
| |
|
| Non-Contact subminiature Fixed Infrared Thermometer |
IR-Compact non-contact infrared thermometer measures the infrared wavelength emitted from the target spot and converts it to standard current signal output (4~20mA) and RS-485 communication signal output.
It can measure from -60℃ to maximum 380℃ in the distance of 8:1 D:S (Distance to Spot) Emissivity is 0.10 ~ 0.99 adjustable.
IR-Compact can monitor the temperature in real time in site through its infrared sensor part and signal processing module. |
|
|
| |
| [ Applications ] |
 Plastics, Fluids, Rubber, Coated components, Asphalt, Wood, Paper, Ceramics, Textiles, Glas, Food etc.
|
| |
| [ Specification
] |
|
|
| Measurement Range |
-60℃ ~380℃
|
| Device |
Thermopile
|
| Accuracy |
±1% / full scale
|
| Repeatability |
±1% of reading
|
| Distance : Spot |
8:1
|
| Optical spectrum wave |
8~14㎛
|
| Responsive Time |
0.5 sec or below
|
| Emissivity |
0.10~0.99
|
| Analog Output |
4~20mA
|
| Communication |
RS-485
|
| Power |
DC 12~24V(Max 100mA) |
| Ambient temperature(no water cooling) |
0~70℃ |
| Temperature Resolution |
0.1℃ |
| Operating Relative Humidity |
5~90% |
|
Operating Ambient Temperature |
-30~85℃
|
| Waterproof |
IP65,NEMA 4 |
| Housing material |
SUS
|
| Weight |
285g |
| Cable lenght |
1m (standard), other(option) |
|
|
| |
[ Code Number IR-Compact-□□□
]
|
|
|
| Model |
Description |
| IR-COMPACT |
|
| Code A |
D:S
|
| 1 |
8:1
|
| 2 |
12:1 (Option) |
| Code B |
Temperature Range |
| 1 |
-60~380℃ |
| 2 |
0~200℃ |
| Z |
Other |
| Code C |
OutPut |
| N |
4~20mA |
| Code D |
Cable Length |
| 1 |
1m Cable |
| Z |
Other (option) |
|
|
| |

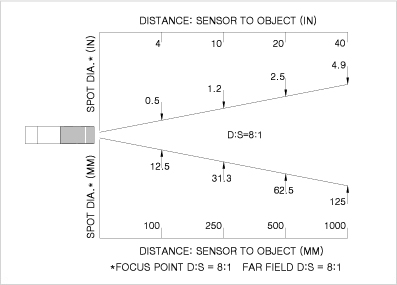

| [Optical Field of View
] |
|
 |
| |
|
